Owen Mumford Cleanroom Door
Case Study

Client: Owen Mumford
Location: Oxfordshire
Sector: Cleanroom Manufacturing
Products Used: SRT-CRC

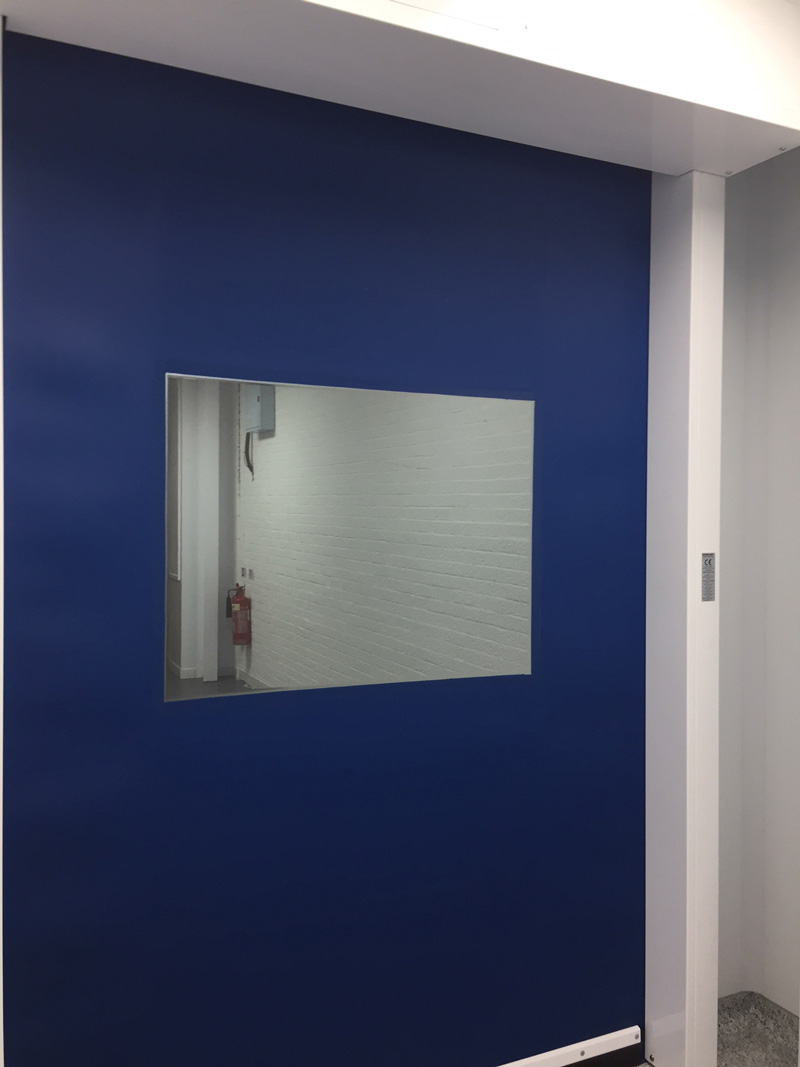

This was a refurbishment project on behalf of a client who was familiar with EFAFLEX and already had some of our high-speed industrial doors in use. The project was to convert an existing warehouse into a cleanroom manufacturing area at their facility in Woodstock, Oxfordshire.

Cleanrooms and pharmaceuticals are a key sector for EFAFLEX as we have designed product features that are beneficial for the industry; smooth surfaces using materials that are easy to keep clean, and high-speed warehouse door openings to reduce the risk of cross contamination.

Here we recommended the SRT-CRC (ISO Class 6) for this specific application. A high-speed cleanroom door that is capable of ensuring that air pressures are in line with ISO Class 6 performance. These industrial doors are ideal for zones where airlocks feature as they maintain the pressures effortlessly.

The client is very pleased with the product; another project that was managed by the EFAFLEX team and with further orders imminent on two additional projects. As leading high speed door manufacturers we look forward to working with the client again in the future.

Learn why working with EFAFLEX provides the perfect industrial door solution for cleanrooms

The pharmaceutical and cleanroom industry has special requirements for the quality of industrial doors: efficient sealing, and hygienic cleanliness are both essential. High-speed  industrial doors from EFAFLEX deliver to exacting standards with high air tightness in combination of the door blade design which prevent unwanted air exchange in the event of pressure differences.

As you would expect, we have a range of cleanroom doors, each designed to deliver exceptional speed and cleanliness, but each with slightly different features and benefits to cater for a variety of applications and environments.

Here is an overview to explain the differences and help with your high-speed warehouse door selection;

The high-speed roll-up (EFA-SRT CR Premium)

    • Almost airtight
    • Smooth surface structure
    • Ideal for air locks
    • Opening up to 1.0 m/s and closing up to 0.5 m/s
    • Up to 150,000 operating cycles p.a.
    • Standard sizes up to w=2,500mm x h=3,000mm

The high-speed roll-up (EFA-SRT ECO)

    • Ideal for materials-handling technology
    • Space-saving design
    • Excellent price-performance ratio
    • With crash protection as option
    • Opening up to 2.0 m/s and closing up to 1.0 m/s
    • Up to 150,000 operating cycles p.a.
    • Standard sizes up to w=6,000mm x h=7,000mm

The high-speed roll-up (EFA-SRT CR Efficient)

    • Almost airtight
    • Extremely slim frame
    • Certified up to ISO Class 6
    • Opening up to 0,8 m/s and closing up to 0,5 m/s
    • Up to 100,000 operating cycles p.a.
    • Standard sizes up to w=3,000mm x h=3,500mm

The high-speed spiral door (EFA-SST)

    • heat insulation with EFA-THERM® laths
    • Opening up to 2.5 m/s and closing up to 1.0 m/s
    • Highest wind load capacity
    • Top safety devices
    • Up to 250,000 operating cycles p.a.
    • Standard sizes of up to w=10,000mm x h=12,000mm

The high-speed turbo door (EFA-STT CR)

    • The door leaf consists at 70% of crystal-clear acrylic glass
    • Almost airtight
    • Also for material locks
    • Opening up to 2.5 m/s and closing up to 0.75 m/s
    • Up to 200,000 operating cycles p.a.
    • Standard sizes up to w=4,000mm x h=5,000mm

The high-speed roll-up door EFA-SRT CR-C

    • Opening up to 2.0 m/s
    • sizes: W = 3,500 mm x H = 3,500 mm
    • Designed for 200,000 load changes p.a.
    • EFA-TRONIC® control completely integrated within the construction
    • 2 mm Transilon curtain in various colours with/without viewing window
    • Stainless steel or powder coating according to RAL
    • TÜV Certification for clean room Class 6 according to ISO 14644-1
    • Manual opening by spring force
