Next Generation Doors
ThermEFA‑SST Therm
- Opens up to 2.5 m/s
- U‑value up to 1.4 W/m²K
- Wind Class 4
- Up to 500,000 cycles
- Widths 500–5,000 mm
- Heights 1,300–5,100 mm
Our EFA‑SST Therm door uses thermally separated EFA‑THERM laths. It minimises heat loss and improves U‑values so temperature‑controlled areas keep energy in and costs down. A cold‑weather package caters to temperatures as low as −25 °C.
Ideal for insulated, high‑throughput openings requiring speed and efficiency.
AluxEFA‑SST Alux
- Certified to DIN EN 12424 Wind Class 5
- Up to 500,000 load cycles per year
- Double‑wall aluminium construction
- Opening up to 2.5 m/s
- Widths 500–5,000 mm; Heights 1,300–5,100 mm
The EFA‑SST Alux line is built with double‑walled aluminium laths for exceptional strength and durability. It is configurable to Resistance Class 2 (WK2 / RC2) and designed for harsh weather.
Excellent for exposed sites demanding high wind resistance and robust security.
R Series Doors
Fabric Premium EFA‑SRT Premium
- Cleanroom version available
- Hygiene version available
- Heavy-duty inside door
- With crash protection as option
- Opening speeds up to 2.0 m/s
- Closing speeds up to 0.75 m/s
- Up to 150,000 cycles per year
- Widths up to 5,000 mm
- Heights up to 5,500 mm
The EFA-SRT Premium is a heavy-duty interior hall door for forklifts, with up to 2.0 m/s opening time, and 0.75 m/s closing time. It can either be galvanised or stainless steel, with optional curtains, customisation, crash protection and safety.
Fabric Eco EFA‑SRT Eco
- Opening speed of up to 2.0 m/s
- Closing speed of up to 1.0 m/s
- Excellent price-performance ratio
- Crash protection option
- Space-saving design
- Up to 150,000 load changes per year
- Widths up to 6,000 mm
- Heights up to 7,000 mm
Economical, space-saving high-speed roll-up door for conveyors and logistics (up to 6,000 mm x 7,000 mm, opening at speeds up to 2.0 m/s), with customisable silicone-free curtains, optional crash protection, and easy emergency pull-rope operation for frequent use.
Easy CleanEFA‑SRT Easy Clean
- Opening speed of up to 2.0 m/s
- Easy to clean
- Slanted end shield and winding shaft cover
- Stainless steel
- Up to 150,000 load changes per year
- Widths up to 4,000 mm
- Heights up to 4,000 mm
Compact, hygienic EFA-SRT Easy Clean door combines stainless steel construction with HACCP/FDA compliant curtain, space-saving frame, easy frame release for cleaning, and steam-clean compatibility for rapid sanitation in confined spaces.
Fabric LogisticsEFA‑SRT MTL
- Power-driven high-speed roll-up door for industrial and commercial use in the materials handling sector.
- Particularly suitable for confined space applications.
- Maximum opening speed of up to 1.5 m/s
- Closing speed of up to 1.0 m/s
- Up to 250,000 operating cycles per year
- Widths up to 3,000 mm
- Heights up to 3,000 mm
Compact, hygienic EFA-SRT Easy Clean door combines stainless steel construction with HACCP/FDA compliant curtain, space-saving frame, easy frame release for cleaning, and steam-clean compatibility for rapid sanitation in confined spaces.
S Series Doors
Deep Freeze SpiralEFA‑SST TK‑100
Our EFA‑SST® TK‑100 is purpose built as the first ever single door set up for deep freeze and cool rooms. It provides remarkable insulation and fast opening without needing a two door passage. It has an almost hermetic seal, easily managing high traffic and protecting products.
- U-value to 0.62 W/m2K
- Air permeability Class 5 (DIN EN 12426)
- Thermally separated frames & laths
- Opening speeds up to 2 metres per second
- Closing times at up to 0.5 metres per second
- Frost protection
- 200,000 operating cycles each year
- Standard sizes to 4500mm wide & 6000mm high
- 100mm thick
Parking SystemEFA-SST PS
Ideal for parking garages and tight-lintel installations needing fast, secure vehicle access with space-saving design and high wind-load capability.
- Space-saving construction
- Highest wind load capability
- Maximum opening speed of up to 1.8 m/s
- Closing speed of up to 1.0 m/s
- Up to 200,000 operating cycles per year
- Widths up to 6,100 mm
- Heights up to 4,000 mm
- Top safety devices
- Optionally with EFA-VENT ventilation laths
ISO SpiralEFA‑SST ISO‑60
This specialist deep freeze door utilises EFAFLEX’s spiral door technology and highly insulated laths, making it the go to high speed door for cooling rooms requiring frequent use and durable sealing.
- 60mm depth with insulated laths
- K value > 0.8 W/m2
- High quality seals minimise air & temperature loss
- Sizes to 6000mm wide & high
- Opening at speeds of up to 2.5 metres per second
- Closing at speeds of up to 1 metre per second
- Up to 250,000 operating cycles per year
CR Series Doors
Cleanroom PremiumEFA‑SRT CR Premium
Designed for the strictest clean zones the EFA‑SRT® CR Premium fabric door is practically airtight and fits ISO Class 5 and GMP compliant air locks. Additionally our EFA‑SRT® CR Premium door is suited for installation in Class 8 cleanrooms and for sealing off cleanrooms of Class 7 rating. Its curtain keeps air exchange low under different pressures to extend filter service life and has a clean edgeless finish that can be wiped down quickly.
- ISO Class 5 (DIN EN 14644‑1)
- TÜV ANNEX I & GMP certified
- Edgeless & smooth finish
- Ideal for air locks
- Opening speeds > 1.5 metres per second
- >150,000 operating cycles per year
- Standard sizes up to 2500mm wide & 3000mm high
Cleanroom EfficientEFA‑SRT CR Efficient
The EFA‑SRT® CR Efficient high speed door gives users dependable cleanroom performance in smaller spaces due to its slim frame. A built in absolute encoder restores operation instantly after a power cut and ISO Class 6 capability suits medium duty openings.
- For medium requirements
- ISO Class 6
- Nearly 100% airtight
- Slimline frame
- Opening speeds up to 1 metre per second
- Up to 100,000 operating cycles per year
- Standard sizes to 3000mm wide & 3500mm high
- Absolute encoder for power restart
- 2mm curtain depth
Cleanroom CompactEFA‑SRT CR‑C
The EFAFLEX EFA‑SRT® CR‑C cleanroom door is a compact, high speed roll up door for sites that have small opening dimensions and need decent sealing. Its fully integrated EFA‑TRONIC® control makes wiring and commissioning simple, meanwhile TÜV certifications mean the door works in ISO Class 6 or 7 cleanrooms.
- Opens at up to 2.5 metres per second
- 200,000 opening cycles each year
- Max sizes 3500mm wide & 3500mm high
- Controls fully integrated
- 2mm curtain thickness
- Optional viewing window
- Stainless steel or bespoke RAL powder coated finishes
- TÜV certification for ISO Class 6 or 7 (ISO 14644‑1)
- Emergency release on both sides
Spiral CleanroomEFA‑STT CR
Our EFA‑STT® CR door is a transparent turbo spiral door for uses where speed and visibility are a high priority. The door features 70% crystal clear acrylic glass laths to increase work flows, minimise pressure loss and support inertisation where atmosphere purity is key.
- 70% clear acrylic glass
- Virtually airtight
- Opening speeds up to 3 metres per second
- Labyrinth seal
- Up to 200,000 operating cycles per year
- Open sight lines & light
- Standard sizes to 4000mm wide & 5000mm high
MS Series Doors

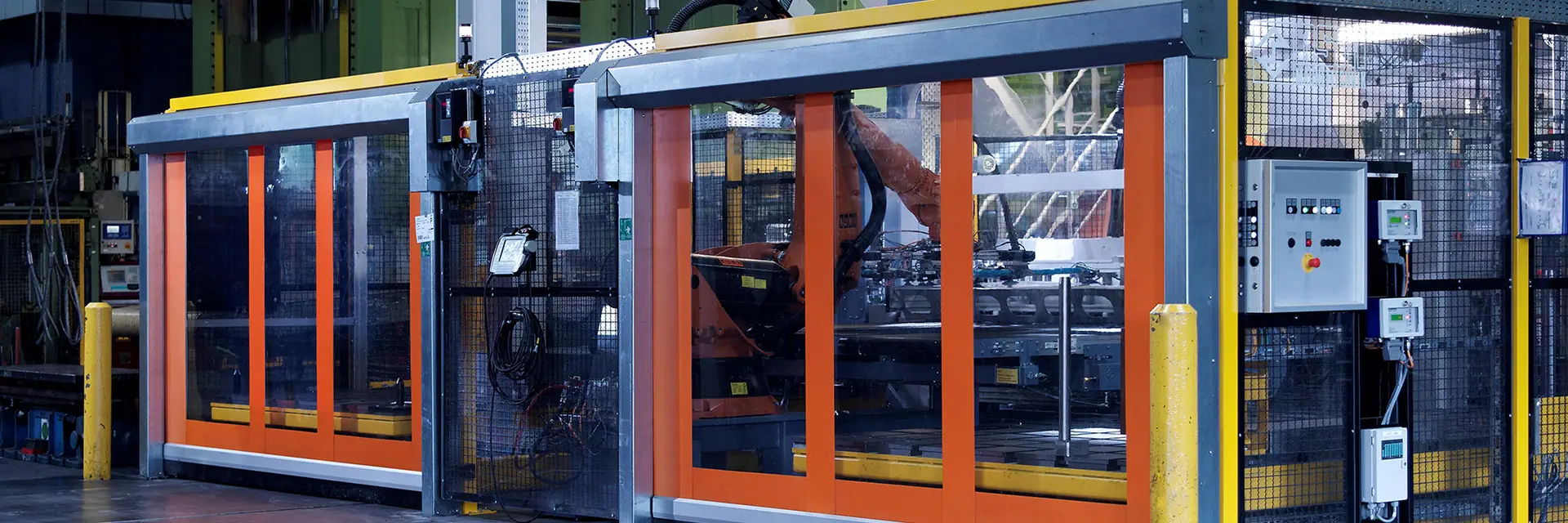

Machine Protection SpiralEFA-SST MS
Ideal for industrial machine guarding, the EFA-SST MS is a self-supporting spiral safety door that delivers rapid access. The EFA-SST MS is a self-supporting machine-safety spiral door with PL D safety, with opening speeds of up to 2.7 m/s and 250,000 cycles per year, with optional finger protection, light barrier and integrated control.
- Opening speed of up to 2.7 m/s
- Functional safety performance level »d«
- Compact extruded aluminium laths
- Life cycle of 12 years
- Maximum 7 cycles per minute
- Up to 250,000 cycles per year
- Widths up to 3,000 mm
- Heights up to 3,000 mm
Machine Protection PerformanceEFA-SRT MS Performance
EFA-SRT® MS Performance focuses on customisation and can be made to order to suit various requirements, plus it has the highest level of cycles on the market. It can be self-assembled quickly for freestanding or wall installation and is very easy to maintain.
- Up to 1,000,000 operating cycles per year
- Safety level D
- Clear frames
- Components can be attached
- Up to 2 metres per second speed
- Cable separation
- Safety light curtain
- Up to 6200mm wide & 5500mm high
Machine Protection FabricEFA-SRT MS
Ideal for high-throughput manufacturing environments that require rapid, safe access through safety guards, stand-alone installation and low maintenance.
- Maximum speed of up to 1.8 m/s
- Life cycle 12 years
- Door curtain made from transparent flexible PVC
- Special curtains are available on request
- Functional safety performance level »d«
- Up to 250,000 cycles per year
- Widths up to 5,000 mm
- Heights up to 3,500 mm
Fabric Upside DownEFA-SRT MS USD
The EFA-SRT® MS USD enables safe, swift material transfer while keeping machine separation. It’s our first door that opens bottom up for upside down operation and was designed especially for automotive production.
- Usable as a portable safety guard
- Flexible & clear PVC
- Safety performance level D
- Self-supporting
- Up to 1.8 metres per second opening
- 600mm-6000mm wide & 1000mm-4500mm high
- Custom colours & finishes
- Up to 250,000 operating cycles per year & 7 cycles each minute
- Safe limit switch
Burglary Protection Doors
Secure SpiralEFA-SST Efficient
Ideal for cramped installations needing a compact, springless high-speed spiral door for indoors and outdoors with RC2 safety.
- Slim frame for confined installation locations
- Chain drive ensures minimal maintenance
- Resistance class 2 according to DIN/TS 18194:2020 – RC 2
- Maximum opening and closing speed of up to 0.5 m/s
- Up to 150,000 operating cycles per year
- Widths up to 4,000 mm
- Heights up to 5,130 mm
- Tested and certified by IFT Rosenheim
