Machine Protection Performance (EFA-SRT MS Performance)
Ideal for industrial environments with custom installation needs, offering flexible wall or freestanding mounting.
- Maximum speed of up to 2.0 m/s
- Life cycle 12 years
- Flexible attachment components
- Rotatable drive in up to 8 positions
- Functional safety performance level »d«
- Up to 1,000,000 cycles per year
- Widths up to 6,200 mm
- Heights up to 5,500 mm
The EFA-SRT MS Performance is a high-speed door with aluminium frames, eight-position rotatable drive, wall or freestanding mounting, PL d safety, up to 1,000,000 cycles, and transparent frames for visibility.
- Highly adaptable frame: Extruded aluminium profiles allow flexible attachment of fences, sensors, and up to four end switches; rotatable drive in up to eight positions; can be wall-mounted or freestanding.
- Exceptional durability: PL D safety, up to 1,000,000 cycles per year, life cycle up to 12 years, standard sizes up to w= 6,200 mm x h= 5,500 mm.

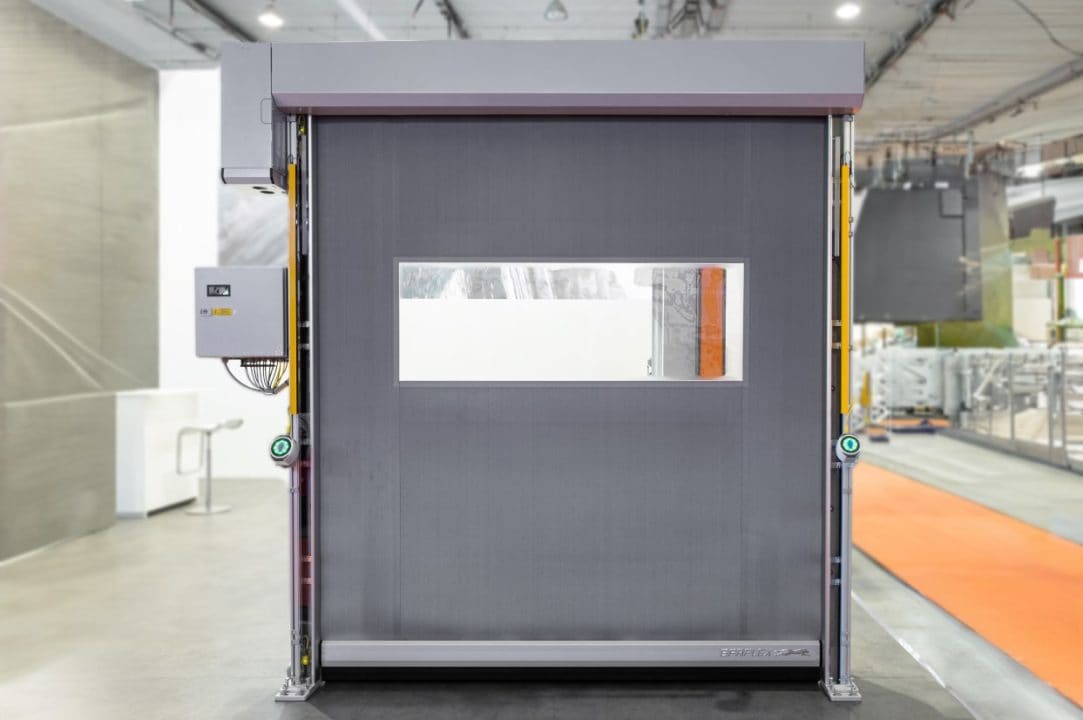

- Transparent frames for visibility: Transparent door frame covers enable visual inspections and LED/traffic-light integration.
- On-site ease: Self-assembly capability; hinged cover and detachable cable covers simplify maintenance.
- Advanced safety features: Safety light curtain at closing plane; optional Head-Safe with extra light curtain for added protection.
Designed for demanding industrial environments, the EFA-SRT MS Performance combines modular aluminium frames, up to one million cycles per year, and wall or free-standing installation. With rotatable drive (eight positions), transparent frames, and LED/traffic-light options, it delivers fast, safe, and easy integration into complex layouts. Safety-critical PL d and head-safe options enhance worker protection and uptime.
Discuss the Machine Protection Performance (EFA-SRT MS Performance) with our team
- The latest in high speed door technology
- Saves energy, reduces noise & quiet operation
- Space saving & sustainable
- Rapid opening, up to 4 m/s
- Advanced security & remote monitoring
Machine Protection Performance Features
(EFA-SRT MS Performance)- Design and durability – Extruded aluminium profiles with flexible attachment points for fences/sensors, integrated cable channels for tidy wiring, self-supporting design with floor options and rotatable drive in up to eight positions. Maintenance: hinged cover for easy access, detachable cable covers for quick servicing, self-assembly capabilities.
- Performance and lifecycle – Speed of up to 2.0 m/s, up to 1,000,000 cycles per year, life cycle around 12 years, standard sizes up to w = 6,200 mm x h= 5,500 mm.
- Visibility and integration – Transparent door frame, covers to inspect safety limits, potential LED strip installation for traffic-light functions.
- Safety and controls – Functional safety level PL D, integrated control suitable for global use, safety light curtain at closing plane, optional head-safe with additional curtain
- Installation options – Wall-mounted or freestanding variants (standard or flush at the front), drive can be oriented to different positions to fit site constraints.
