Machine Protection Fabric (EFA-SRT MS)
Ideal for high-throughput manufacturing environments that require rapid, safe access through safety guards, stand-alone installation and low maintenance.
- Maximum speed of up to 1.8 m/s
- Life cycle 12 years
- Door curtain made from transparent flexible PVC
- Special curtains are available on request
- Functional safety performance level »d«
- Up to 250,000 cycles per year
- Widths up to 5,000 mm
- Heights up to 3,500 mm

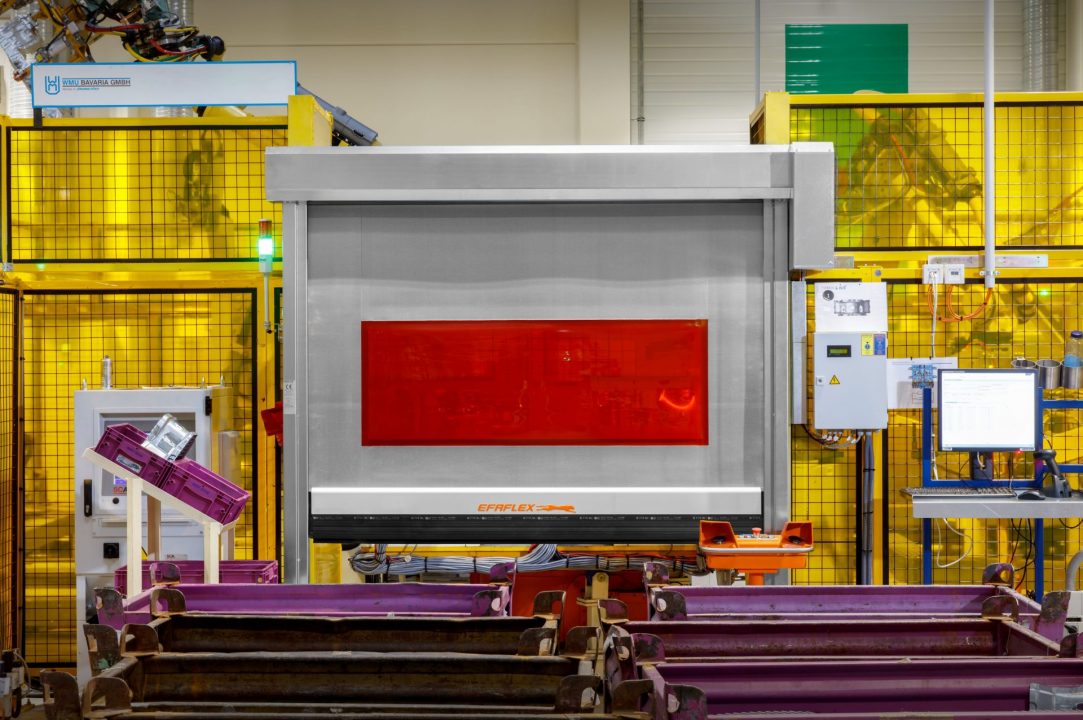

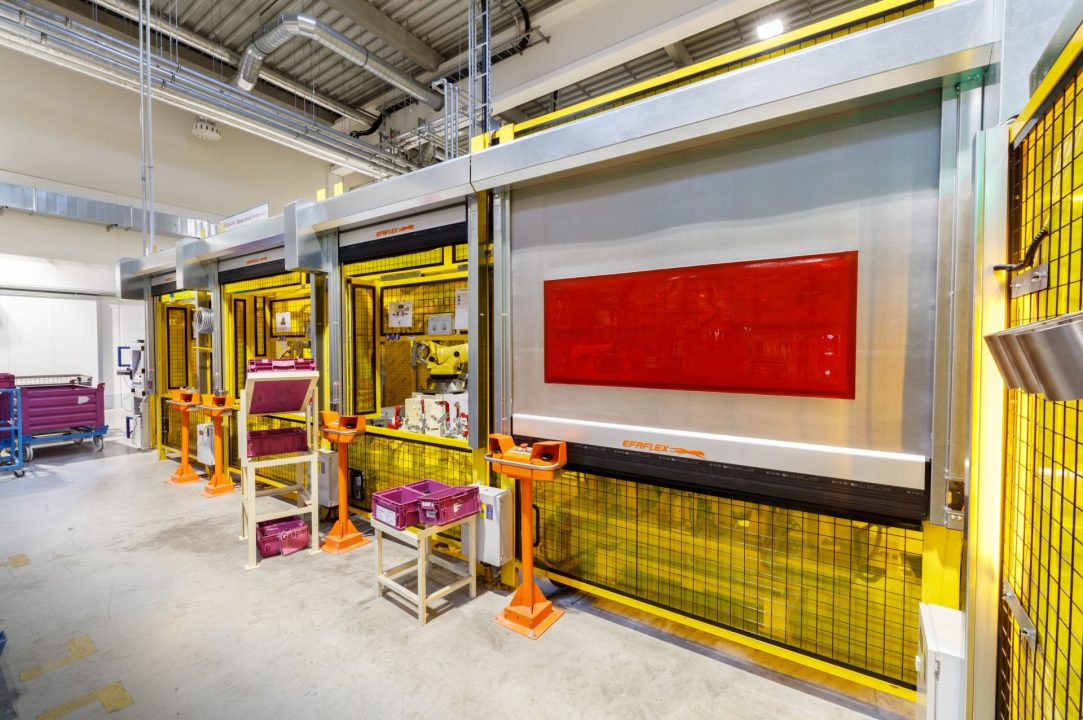

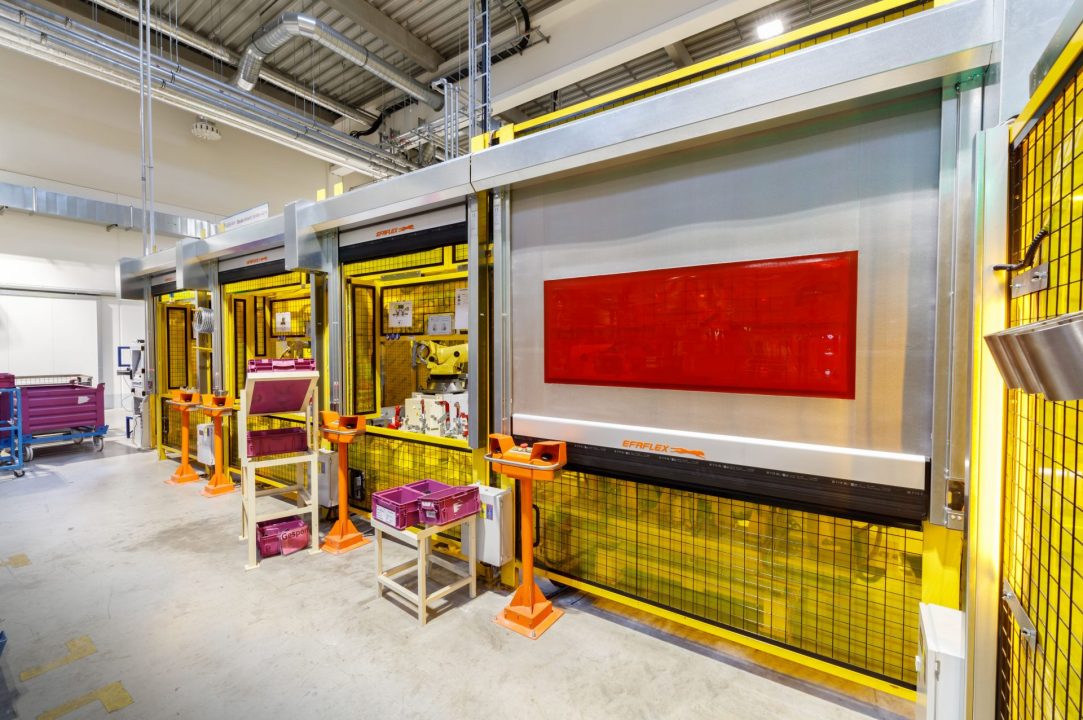

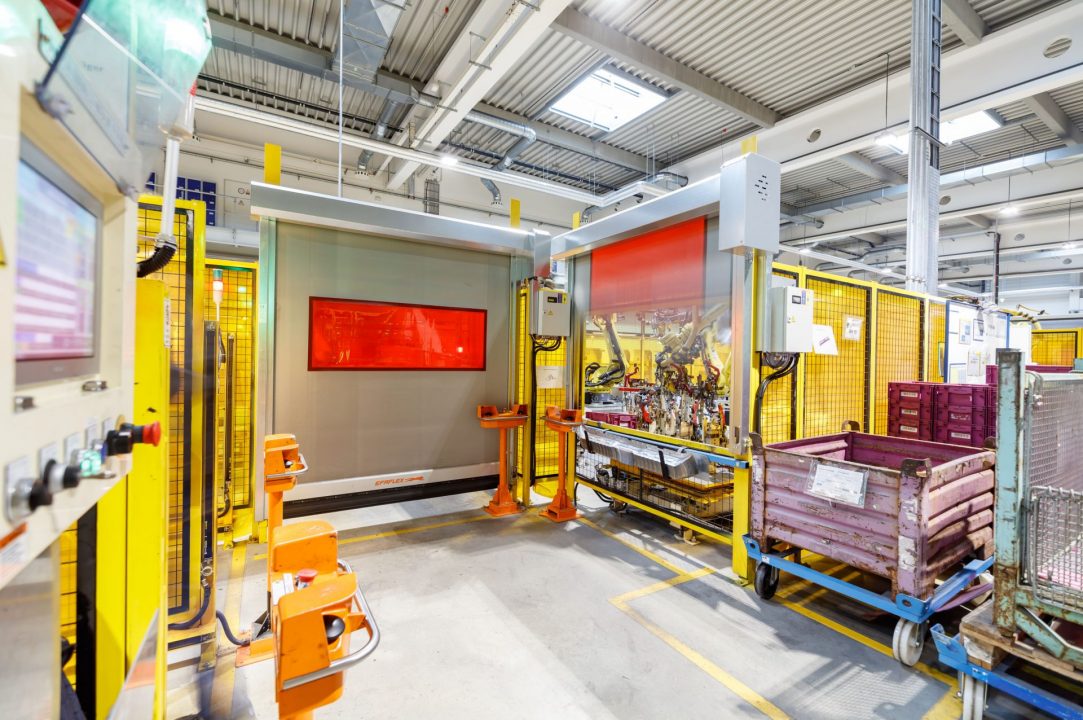

The EFA-SRT MS Machine Protection Fabric is a high-speed roll-up door with transparent curtains, safety strips and light barrier, delivering up to 1.8 m/s, 250,000 cycles per year and a life cycle of about 12 years, average sizes of w = 5,000 mm x h= 3,500 mm, encoder drives, and a stand-alone option.
- Space saving, compact design: Seamless integration into safety guards
- Standard door leaf is fully transparent with warning strips: Optional coloured, tear-resistant curtains and welding protection curtains, paint-adhesion friendly.
- Very high durability and performance: Up to 1.8 m/s, up to 250,000 cycles per year, and with a life cycle of approximately 12 years, standard sizes up to w = 5,000 mm x h = 3,500 mm.
- Advanced drive and control technology: Shaft-mounted or slip-on drives with absolute encoders and gear protection, PL “d” safety drive with worldwide control unit.
- Comprehensive safety and installation flexibility: Integrated safety strip and light barrier, head-safe option with safety light grid, optional floor supports, stand-alone installation, and slim side frames.
The EFA-SRT MS high-speed roll-up door delivers fast, reliable throughput with a safety-first design. It combines transparent, maintenance-light curtains, a compact frame for easy guard integration, and long-life cycles of up to 12 years. Advanced drive and control systems enable up to 1.8 m/s operation and up to 250,000 cycles annually, with robust safeguarding, including obstacle detection and easy maintenance.
Discuss the Machine Protection Fabric (EFA-SRT MS) with our team
- The latest in high speed door technology
- Saves energy, reduces noise & quiet operation
- Space saving & sustainable
- Rapid opening, up to 4 m/s
- Advanced security & remote monitoring
Machine Protection Fabric Features
(EFA-SRT MS)- Functional drive – The interaction of a high-performance frequency converter control unit and a functionally adjusted drive allows a high rate in manufacturing processes. The drive of the EFA-SRT MS is a shaft-mounted drive with absolute encoder, which is also equipped with a gear breakage protection. The drive of the EFA-SRT MS is a slip-on drive with additional gear break protection and an absolute encoder.
- Innovative door control – The control unit which can be used worldwide operates at performance level PL D for safety relevant control circuits and is operated via the higher-level system controls.
- Sophisticated characteristics – Because there is no weight counterbalance mechanism, the side door frames are very slim; the maintenance work and spare parts required are significantly reduced. Transparent covering provides a clear view of the integrated safety limit switch of cat. 4/ PL »e« according to DIN EN ISO 13849 – 1. Thanks to the optional floor supports, the door can be installed as a stand-alone system. Uneven ground is compensated by levelling screws.
- High-end safety technology – The EFA-SRT MS high-speed roll-up door has a safety contact strip integrated into the main closing edge and an additional light barrier. If the light barrier detects a person or an obstacle within the closing level, the movement of the door leaf is stopped immediately, even before any contact takes place. This increases safety for man and machine. In addition, our Machine Protection doors can be supplemented with the head-safe option. Here, the operator’s side is equipped with a safety light grid that prevents the door from closing as soon as an obstacle is detected.
