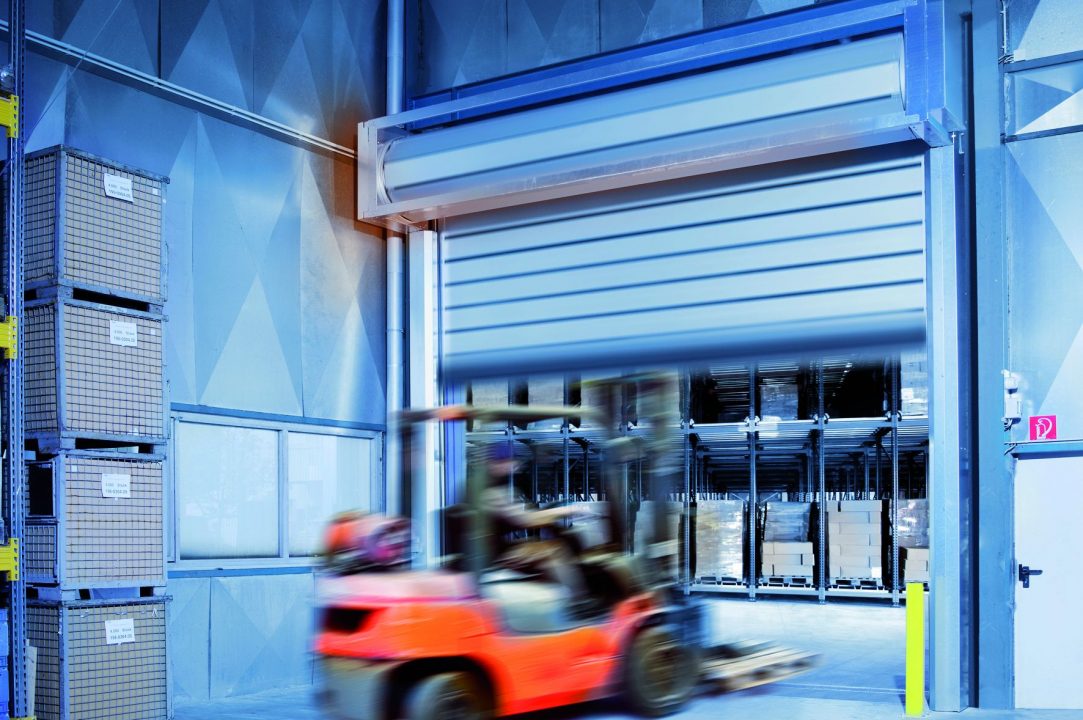

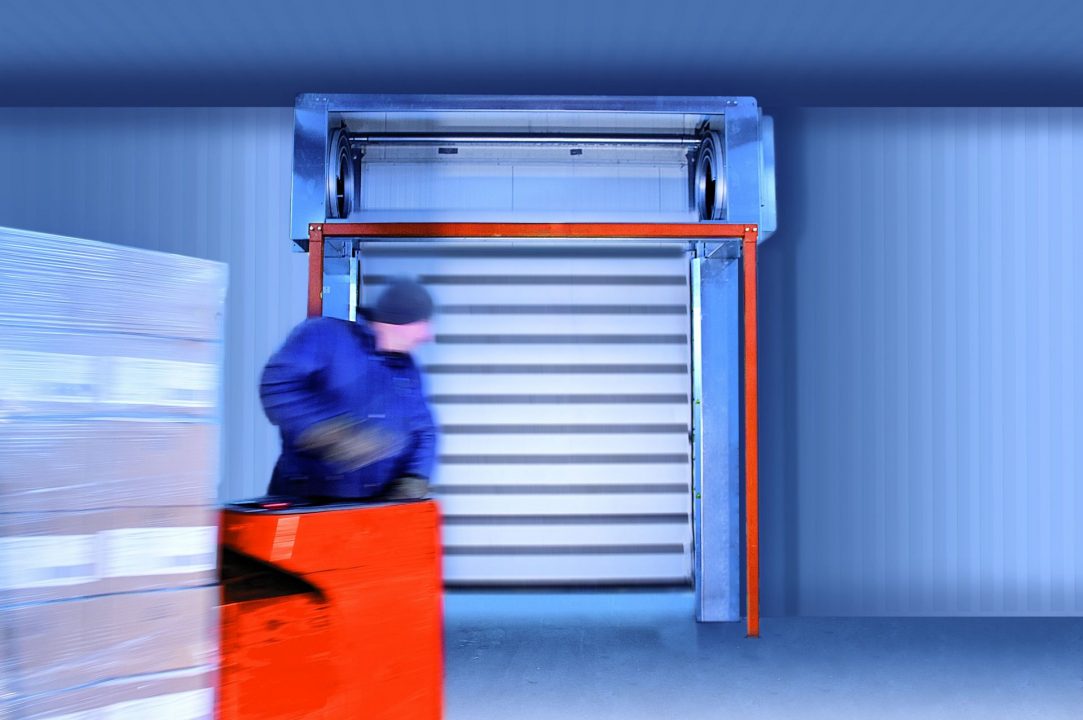

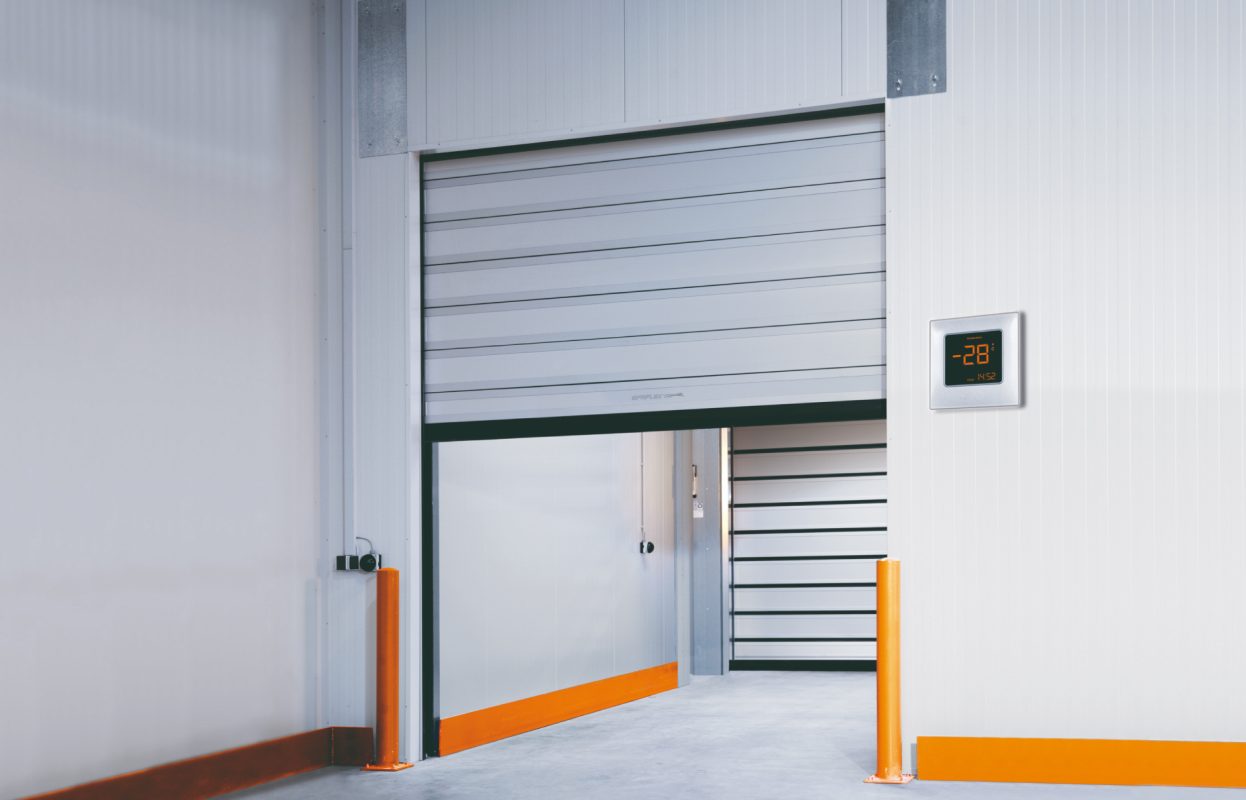

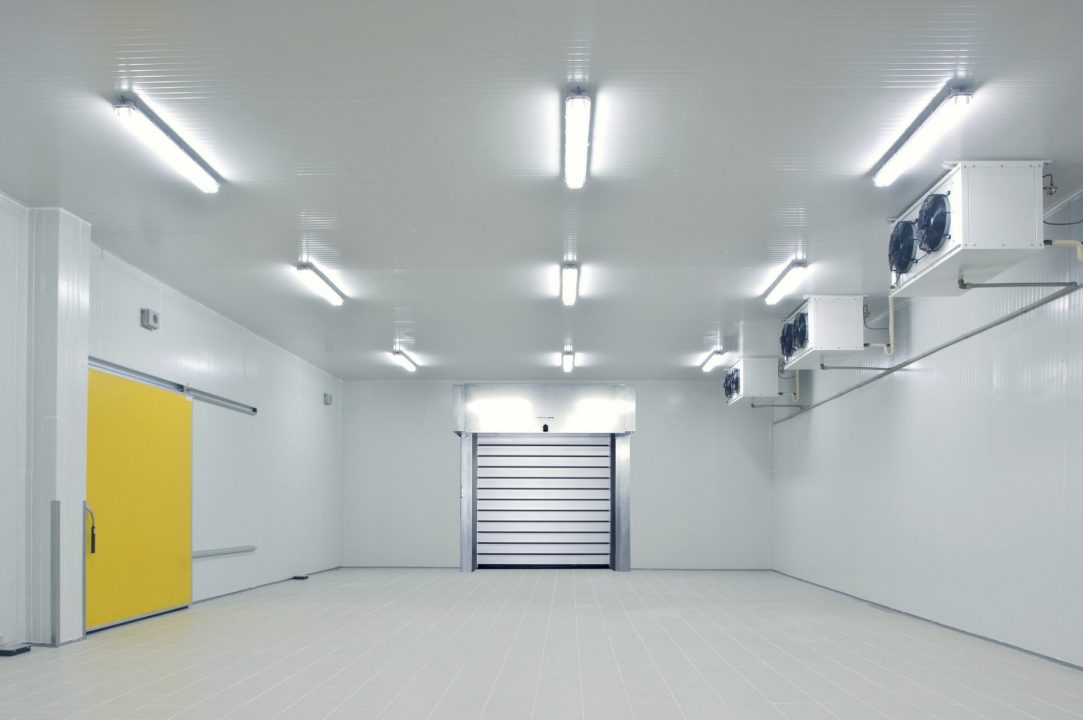

Deep Freeze Spiral (EFA-SST TK-100)
Ideal for deep freeze and freeze rooms, the EFA-SST TK-100 provides near hermetic sealing, maximum insulation, and reliable, rapid access.
- Optimal deep-freeze single door solution
- Air permeability class 5 according to DIN EN 12426
- Almost hermetically sealed
- Maximum opening speed of up to 2.0 m/s
- Closing speed of up to 0.5 m/s
- U value up to 0,62 W / m2K
- Up to 200,000 operating cycles per year
- Widths up to 4,500 mm
- Height up to 6,000 mm
The EFA-SST TK-100 is a single-door solution for freezers, delivering near-hermetic sealing, 0.62 W/m2k insulation, air permeability 5, 2.0 m/s opening, 0.5 m/s closing, and up to 200,000 cycles yearly.
- The true-single door solution for freezer areas: Optimal insulation and minimal air exchange.
- Superior insulation performance: U value up to 0.62 W/m2K with 10mm thick EFA-THERM laths and air permeability class 5.
- Fast operation: Opening speeds up to 2.0 m/s and closing speeds up to 0.5 m/s for rapid access.
- Thermally separated frames and laths: With near-hermetic sealing and warm-side installation.
- High durability and safety: Up to 200,000 cycles per year, and advanced safety tech (EFA-SCAN).
The EFA-SST TK-100 is a true single-door solution for deep-freeze zones, delivering exceptional insulation with 100 mm EFA-THERM laths and U 0.62 W/m2K. It opens at 2.0 m/s and closes at 0.5 m/s, tolerates -30C° to +30C°, and supports up to 200,000 cycles annually. Its hermetic sealing, warm-side installation, and EFA-SCAN safety ensure reliable, energy-efficient operation.
Discuss the Deep Freeze Spiral (EFA-SST TK-100) with our team
- The latest in high speed door technology
- Saves energy, reduces noise & quiet operation
- Space saving & sustainable
- Rapid opening, up to 4 m/s
- Advanced security & remote monitoring
Deep Freeze Spiral Features
(EFA-SST TK-100)- Perfect heat insulation – 100 mm thick EFA-THERM insulation laths, thermally separated aluminium profiles with low-wear seals, vertical insulation toward the case, active lintel seal between building and door leaf, heating bands available for seals in high temperature differences or humidity.
- Energy-efficient frost protection – Contact surface heaters integrated in surrounding sealing profiles and the contact strip, heat the seals to reduce frost and heating costs, U-value up to 0.62 W/m2K, suitable for temperatures from +30°C to -30°C
- Dynamic door closure and sealing – Circumferential profile seal and dynamic door leaf guide (EFA-AFM) move the leaf toward the case when closing, enabling near-hermetic closure, installation level is on the warm side to minimise cold related wear.
- High-end safety technology – Built to high safety standards with advanced systems such as the world-class laser safety technologies (EFA-SCAN) ensuring reliable protection for people and goods.
- Size, range and durability – Standard sizes up to w= 4,500 mm x h= 6,000 mm, designed for up to 200,000 operating cycles per year, robust construction suitable for deep-freeze applications and demanding environments.
