ALUX (EFA-SST ALUX)
Part of the Next Generation family, this door is designed for intensive use with its high durability and security benefits.
- Opens in up to 2.5 m/s

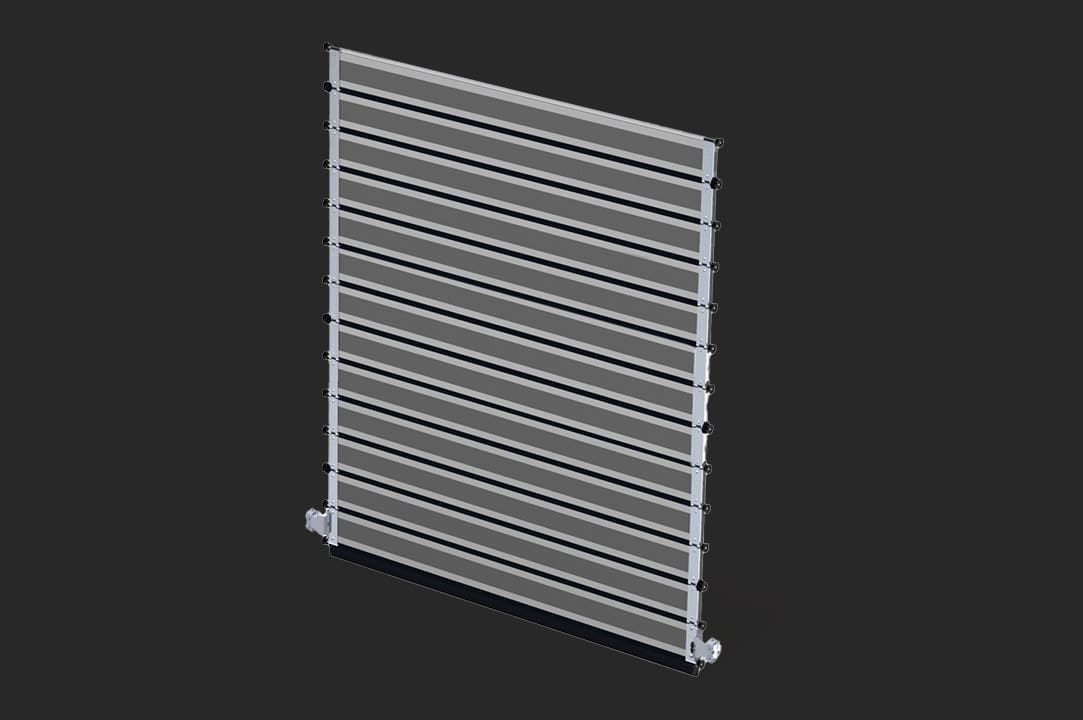

- Double wall aluminium laths
- Highest wind resistance at Class 5
- Up to 500,000 cycles
- Widths 500–5,100 mm
- Heights 1,300–5,100 mm

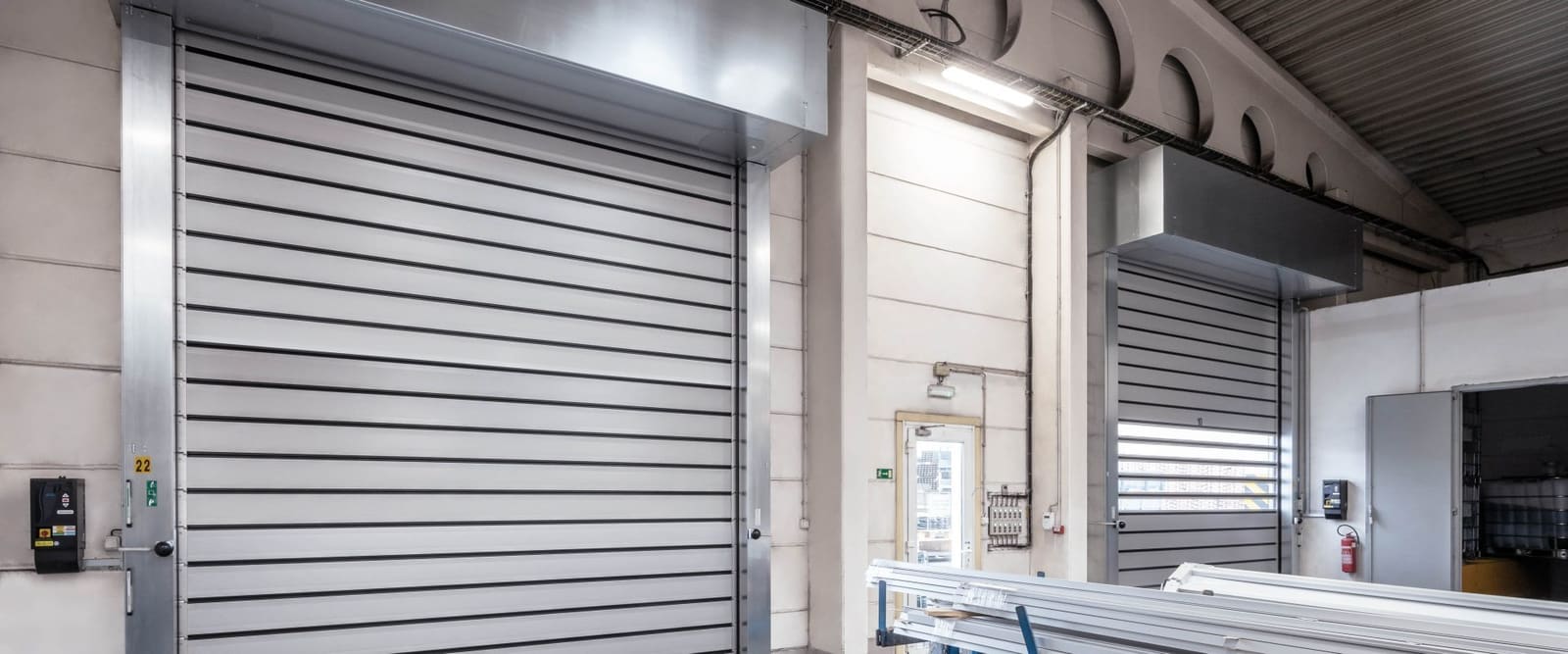

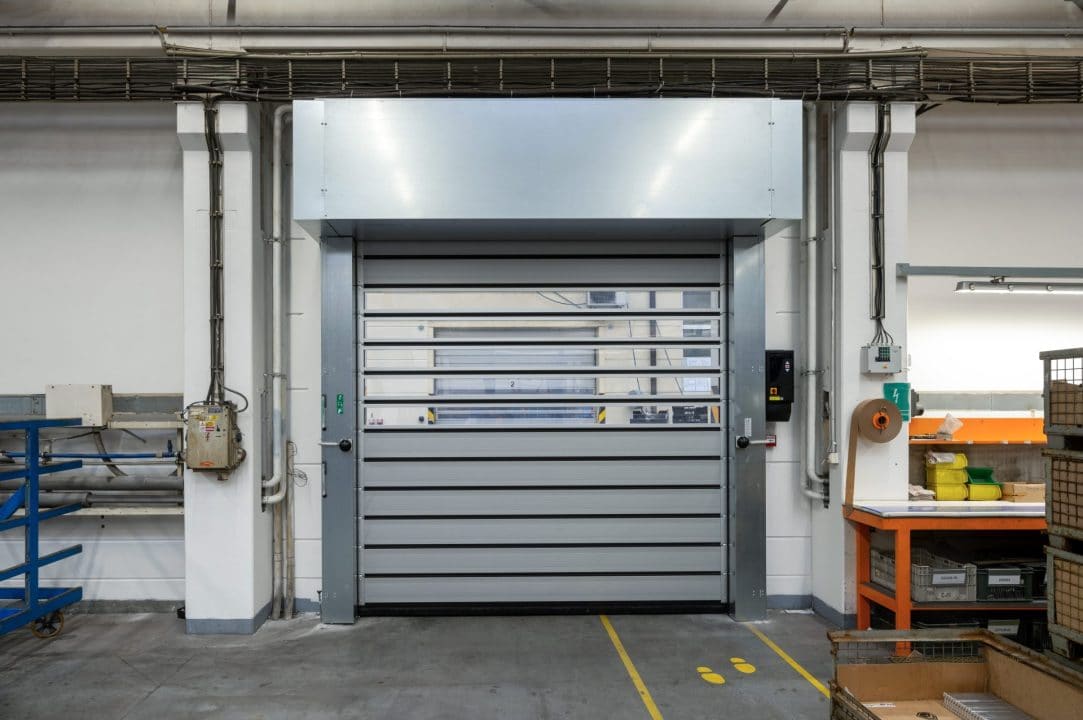

The Alux door boasts high speed closure with double walled aluminium laths, class 5 wind resistance and opening speeds of up to 2.5 m/s. It supports intensive use with up to 500,000 cycles per year, advanced safety (EFA TLG, spring break detection) and easy maintenance (pivotable covers, remote diagnostics). Modular variants (Premium/Eco/Basic) and optional packages extend this doors suitability for cooling, process and security applications in diverse industrial environments.
- Robust delivery: Double‑walled aluminium laths for high durability and security.
- Extremely high wind resistance: With Wind Class 5 tolerance and exceptional reliability when operating in severe weather.
- Fast operation speeds: Opens up to 2.5 m/s and closes up to 1.0 m/s for efficient traffic flow.
- Premium door for intensive use: Rated up to 500,000 cycles per year
Modular Next‑Generation concept (Premium / Eco / Basic) with many optional packages and customisation. The EFA‑SST Therm spiral door blends exceptional insulation, high speed and wind‑class to minimise energy loss and wait times, also boosting overall efficiency. Its modular design is ideal for specific applications, whilst the integrated safety features and a flexible frame cover, enable quick maintenance. The result is a durable, low‑maintenance door that delivers substantial energy savings and operational reliability.
- The latest in high speed door technology
- Saves energy, reduces noise & quiet operation
- Space saving & sustainable
- Rapid opening, up to 4 m/s
- Advanced security & remote monitoring
Alux Features
(EFA-SST Alux)- Safety - EFA TLG® door light grid (Premium/Eco), spring break detection, bolt lock available to secure door during maintenance.
- Pivotable/swivelling frame cover - give quick access for inspection and repair; compatibility with EFA SmartAssist® enables remote diagnosis
- Flexible endshield - straight or slanted options to accommodate uneven floors of up to 200 mm.
- Control options - EFA Tronic® can be wall mounted or integrated into the spiral box, with Light and Professional variants available for a number of application requirements.
- Equipment packages - Cooling package from −1 °C to −25 °C; process package for logistics/manufacturing; Mechanical locking for Security 1 and Automatic locking for Security 2 can be integrated with alarm systems.
- Size and application range - Typical standard sizes of up to 5,000 mm (width), and 5,100mm (height)
- Tailored infrastructure - Part of the Next Generation family of doors, allowing configurations across Premium/Eco/Basic variants.
