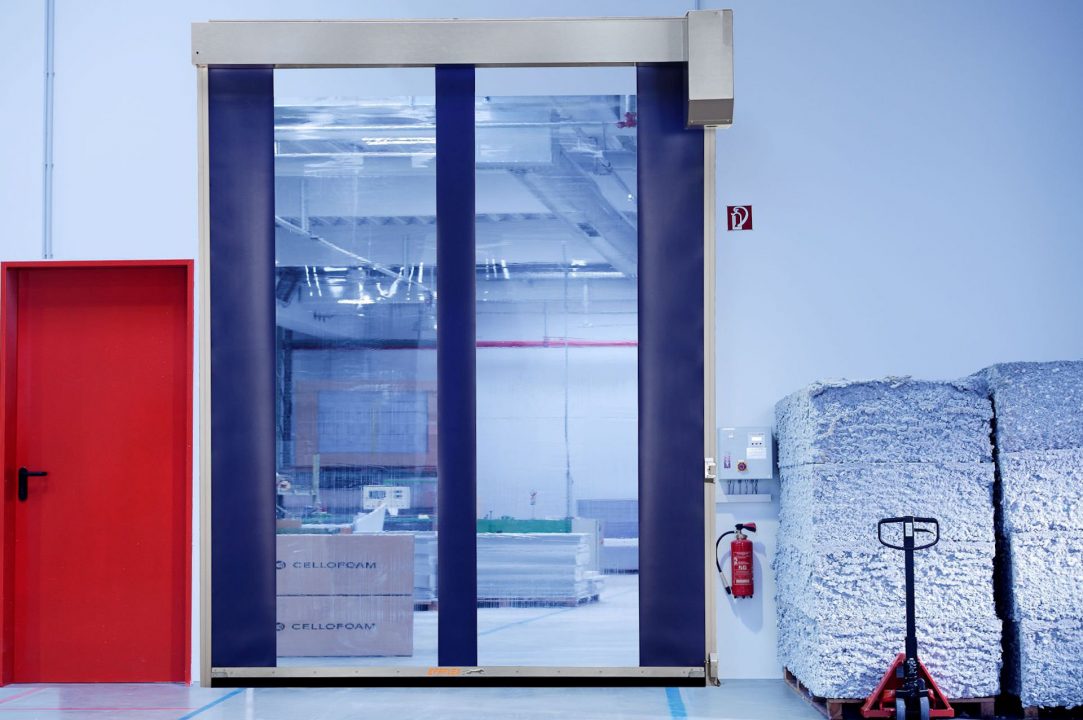

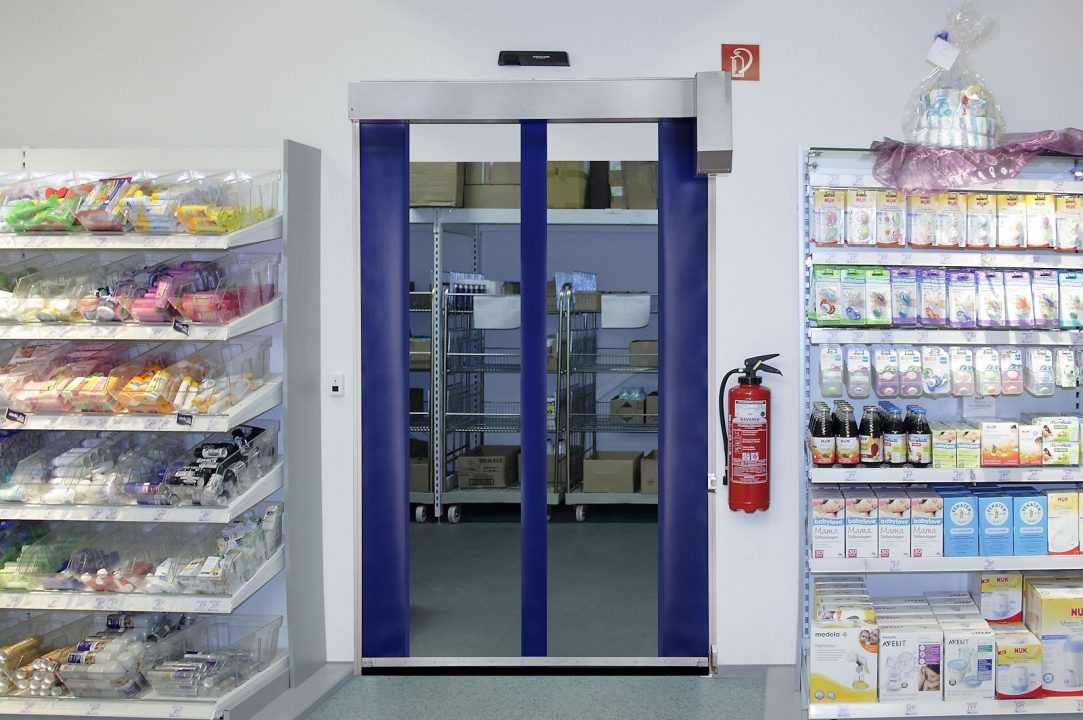

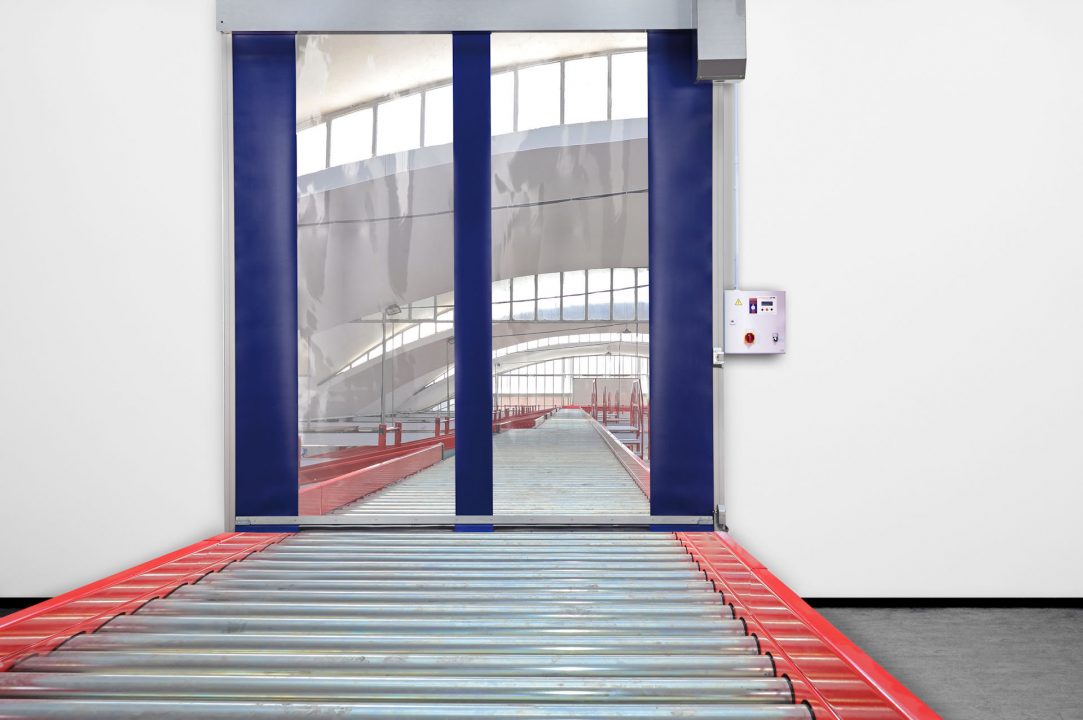

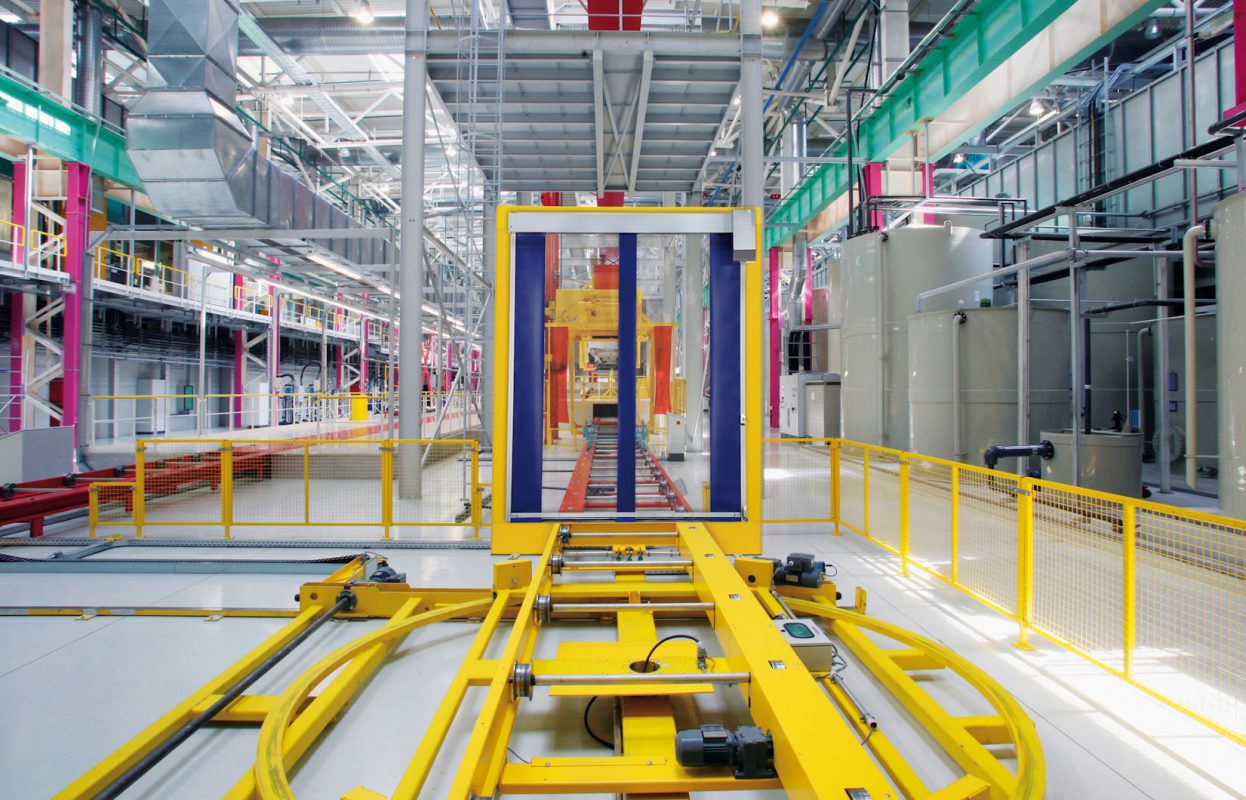

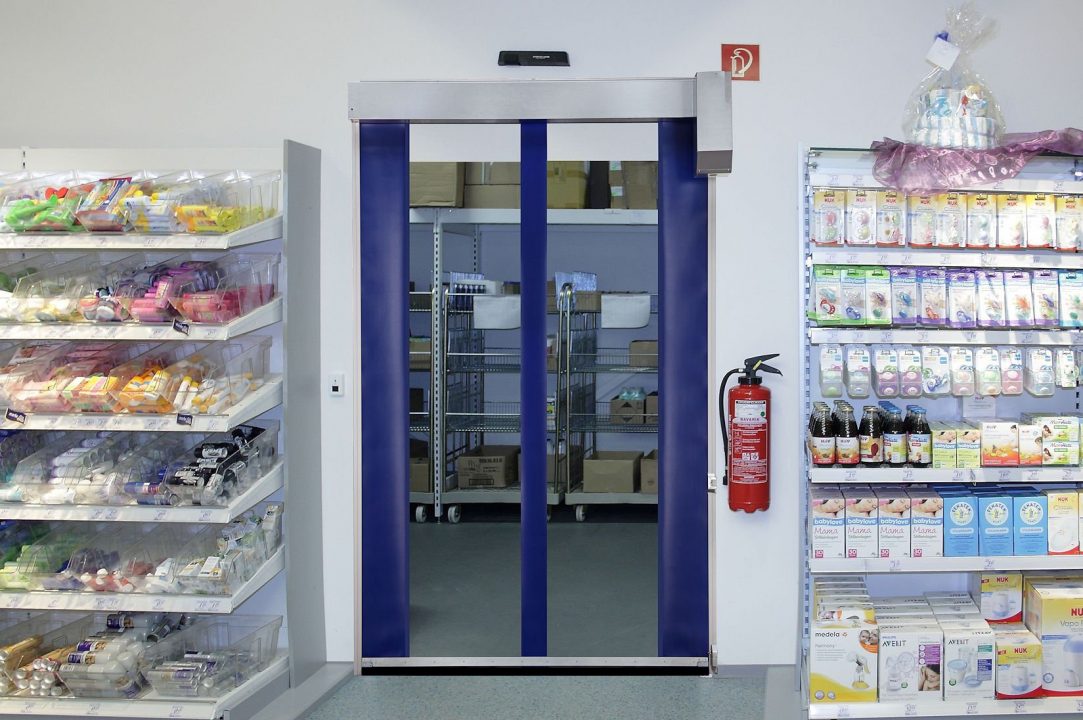

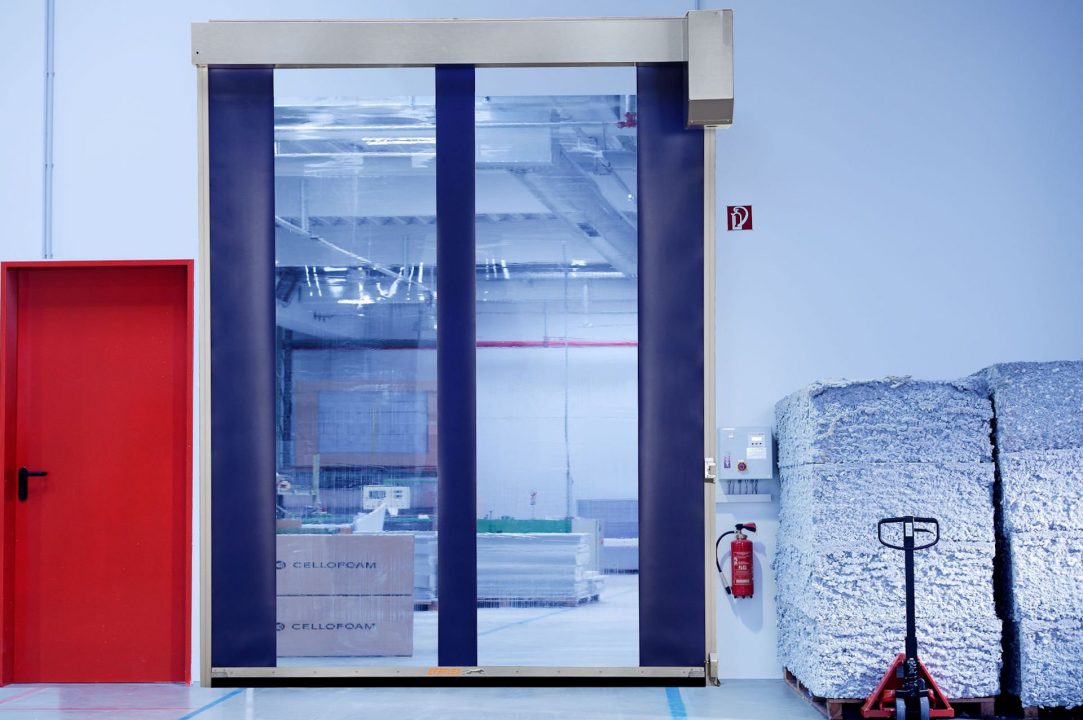

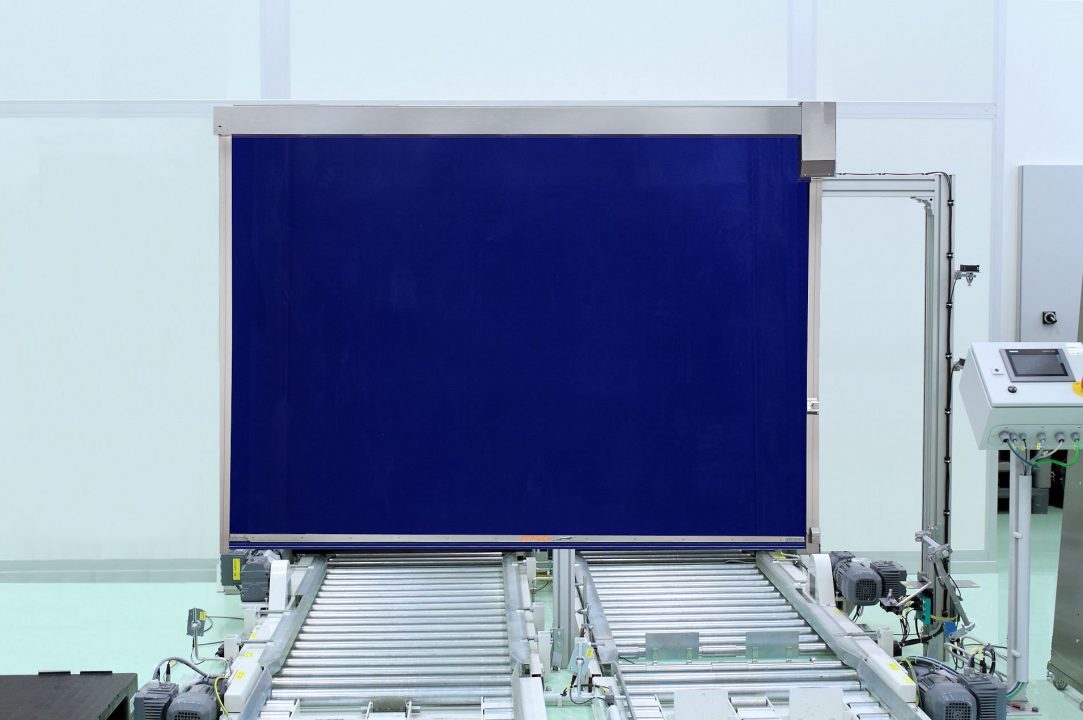

Fabric Logistics (EFA-SRT MTL)
Ideal for intensive logistics environments that require fast, reliable access control in enclosed spaces.
- Power-driven high-speed roll-up door for industrial and commercial use in the materials handling sector.
- Particularly suitable for confined space applications.
- Maximum opening speed of up to 1.5 m/s
- Closing speed of up to 1.0 m/s
- Up to 250,000 operating cycles per year
- Widths up to 3,000 mm
- Heights up to 3,000 mm
Designed for logistics in confined spaces, EFA-SRT MTL is a high-speed door in up to 1.5 m/s (1.0 m/s closing), with access restrictions, end-element options, and flexible drives and safety features.
- Logistics-focused design for intensive materials handling: Configurable access restrictions for enclosed spaces.
- Especially suitable for confined spaces: Flexible end-element options to fit on-site conditions.
- Fast performance: Up to 1.5 m/s operating speed and 1.0 m/s closing speed.
- High durability: Up to 250,000 cycles per year and standard sizes up to w = 3,000 mm x h = 3,000 mm.
- Flexible drive and safety configurations: Standard frequency converters, multiple emergency, safety, and monitoring options (including light barriers and CAT IV switches).
Designed for intensive logistics in enclosed spaces, the EFA-SRT MTL combines high-speed, configurable access protection, and compact installation. It supports access restriction or personal protection modes, adjustable and elements, and optional light barriers. With standard frequency converter drives, CAT IV switches, and up to 250,000 cycles per year, it delivers durable, flexible, low-maintenance operation for materials handling in dynamic environments.
- The latest in high speed door technology
- Saves energy, reduces noise & quiet operation
- Space saving & sustainable
- Rapid opening, up to 4 m/s
- Advanced security & remote monitoring
Fabric Logistics Features
(EFA-SRT MTL)- Access restriction (without personal protection) – The MTL can restrict access to danger zones without providing personal protection. End element options include straight or with a door leaf extension. A horizontally continuous end profile with safety edge can be provided, and light barriers can be integrated. A door line light grid (TLG) is not possible in this variant.
- Access restriction (with personal protection) – To safeguard personnel, doors in danger areas can be equipped with safeguarding systems such as a safety contact strip and light barrier or a door line light grid (TLG). This configuration is suitable for protecting end-of-line transfer points and similar applications.
- End element straight – For use as access restriction (pedestrian traffic). Features a straight end element with horizontally aligned safety edge and optional light barriers. The end element may be complemented by a door line light grid in applicable cases.
- End element with door leaf extension – For use as access restriction (pedestrian traffic). The locally configurable door leaf extension allows optimal adaptation to on-site conditions. It includes horizontal safety edge on the end profile and light-barrier monitoring of the door closing level.
- Drive modules– The MTL supports all modern intralogistics applications. Depending on installation, space, and process requirements, a suitable drive is available. Standard frequency converters ensure long service life and dynamic operation. Safety and operational requirements are met with various emergency opening methods, safety and pulse encoder systems, plus mechanical and/or inductive limit switches (up to CAT IV).
