S Series Doors

The S Series is the largest range of spiral doors we offer, with over 15 different models to choose from, with varying features and size ranges. This spiral door range suits openings from a minimum of 1200mm wide and 1200mm high to a maximum of 10,000mm wide and 12,000mm high which makes it ideal for a range of spaces.

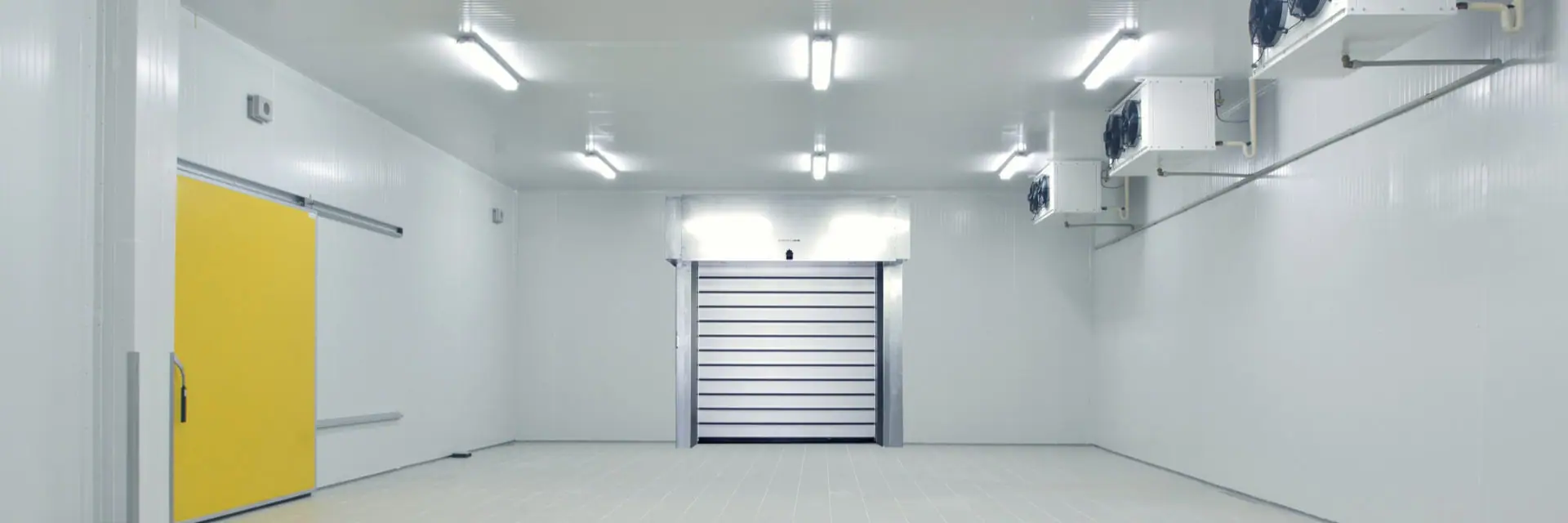

Deep Freeze SpiralEFA-SST TK-100

Optimal deep-freeze single door solution
Air permeability class 5 according to DIN EN 12426
Almost hermetically sealed
Maximum opening speed of up to 2.0 m/s
Closing speed of up to 0.5 m/s
U value up to 0,62 W / m2K
Up to 200,000 operating cycles per year
Widths up to 4,500 mm
Height up to 6,000 mm

Find out more

Parking SystemEFA-SST PS

Space-saving construction
Highest wind load capability
Maximum opening speed of up to 1.8 m/s
Closing speed of up to 1.0 m/s
Up to 200,000 operating cycles per year
Widths up to 6,100 mm
Height up to 4,000 mm
Top safety devices
Optionally with EFA-VENT ventilation laths

Find out more

ISO SpiralEFA-SST ISO-60

Max. heat insulation with EFA-THERM laths
K-value up to 0.8 W/m2 K
60 mm thick door leaf
Maximum opening speed of up to 2.5 m/s
Closing speed of up to 1.0 m/s
Up to 250,000 operating cycles per year
Widths up to 6,000 mm
Height up to 6,000 mm

Find out more
